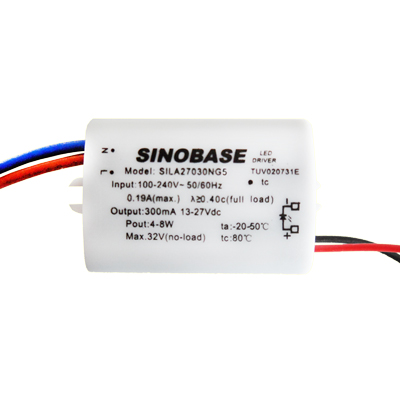

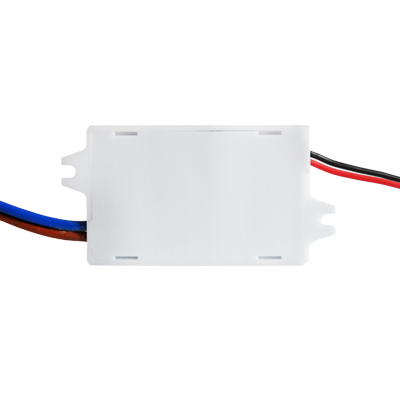

Small-sized water-proof LED driver (SinoBase) 4-8W, 100-240Vac
With 50,000hrs warranty, optional for water-proof version
Features:
· Design in small size to compact various of LED luminaires;

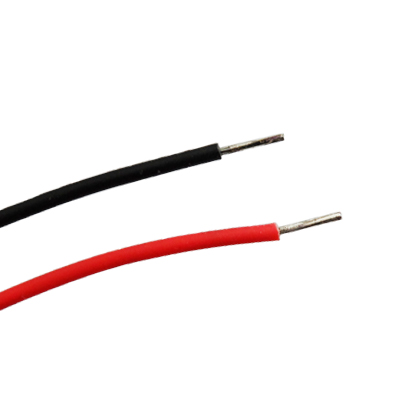

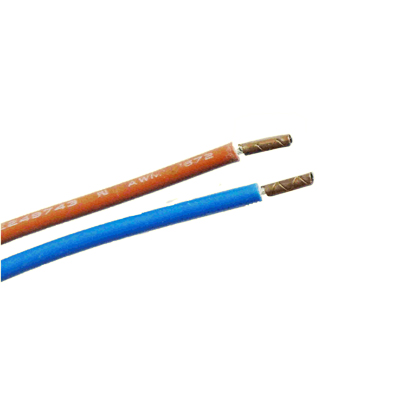

· Easy for installation with tinned or coated cables at both ends;
· Constant current mode LED driver;
· Output SELV protection, short circiut, over current and over voltage protection;
· Extremely high precision output current;
· A wide range of input voltage 100-240Vac;
· Power factor≥0.7;
Specification：
| Power | Model | U_in (Vac) | U_out(Vdc) | Rated I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
4-8W | SILA32025NG5 | 100-240V～50/60Hz | 16-32 | 0.25 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA27030NG5 | 100-240V～50/60Hz | 13-27 | 0.3 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA23035NG5 | 100-240V～50/60Hz | 11-23 | 0.35 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA20040NG5 | 100-240V～50/60Hz | 10-20 | 0.4 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA18045NG5 | 100-240V～50/60Hz | 9-18 | 0.45 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA16050NG5 | 100-240V～50/60Hz | 8-16 | 0.5 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA15055NG5 | 100-240V～50/60Hz | 7-15 | 0.55 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA13060NG5 | 100-240V～50/60Hz | 7-13 | 0.6 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA12065NG5 | 100-240V～50/60Hz | 6-12 | 0.65 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA12070NG5 | 100-240V～50/60Hz | 6-12 | 0.7 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
P.S.:
* The current step is 50mA, contact us for more specs to meet your needs;
* Option for glue potting or not as per your requirements.

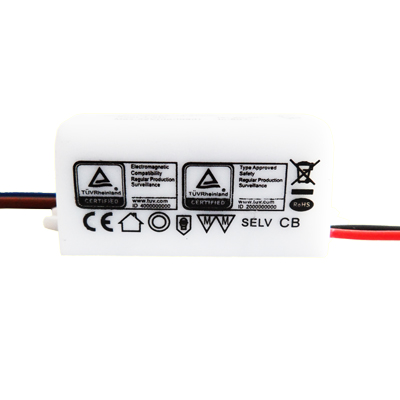

Certification：TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：

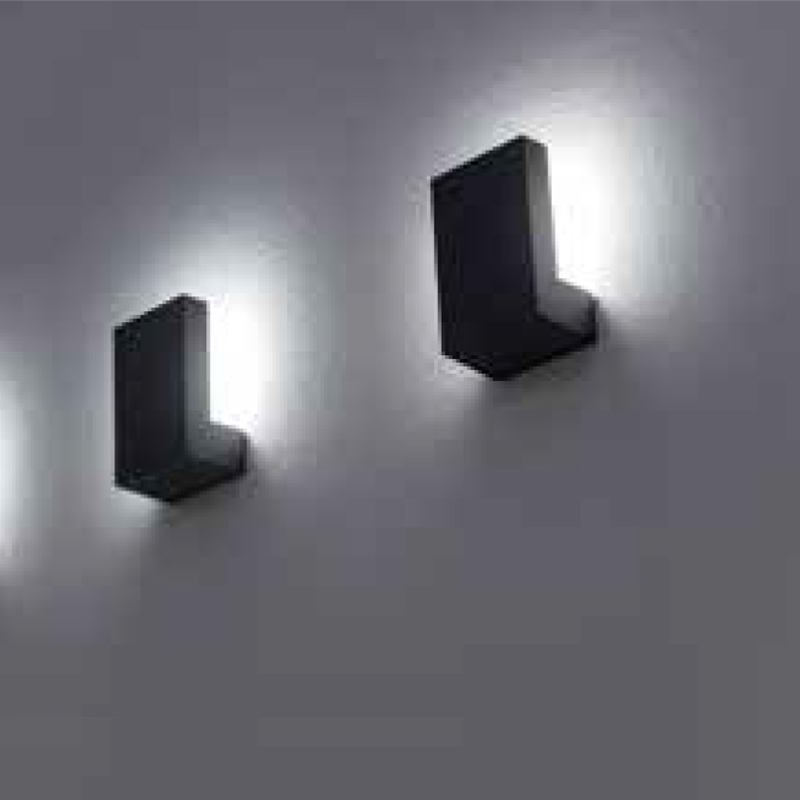

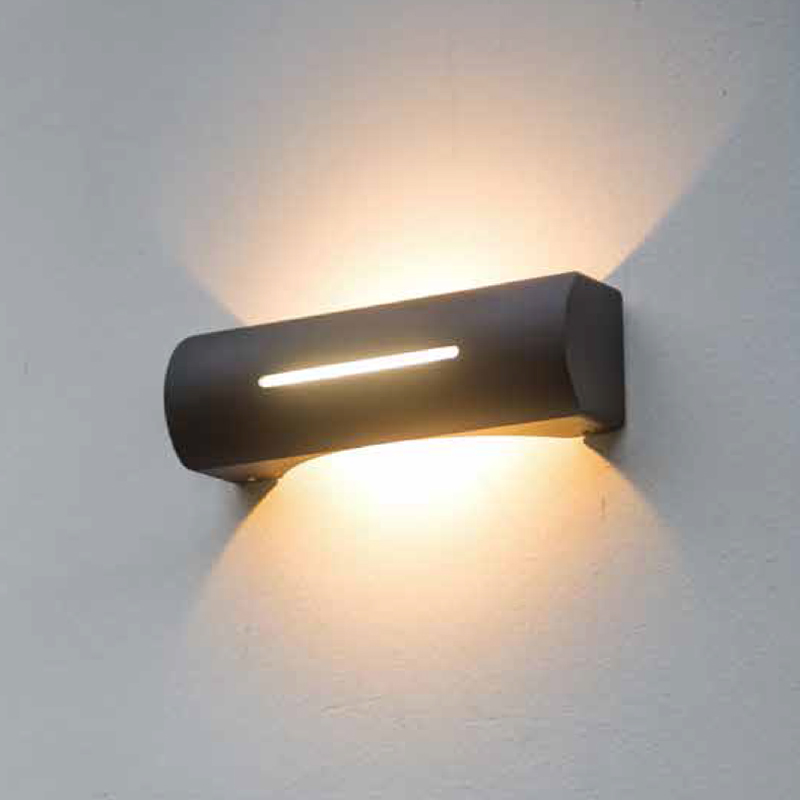

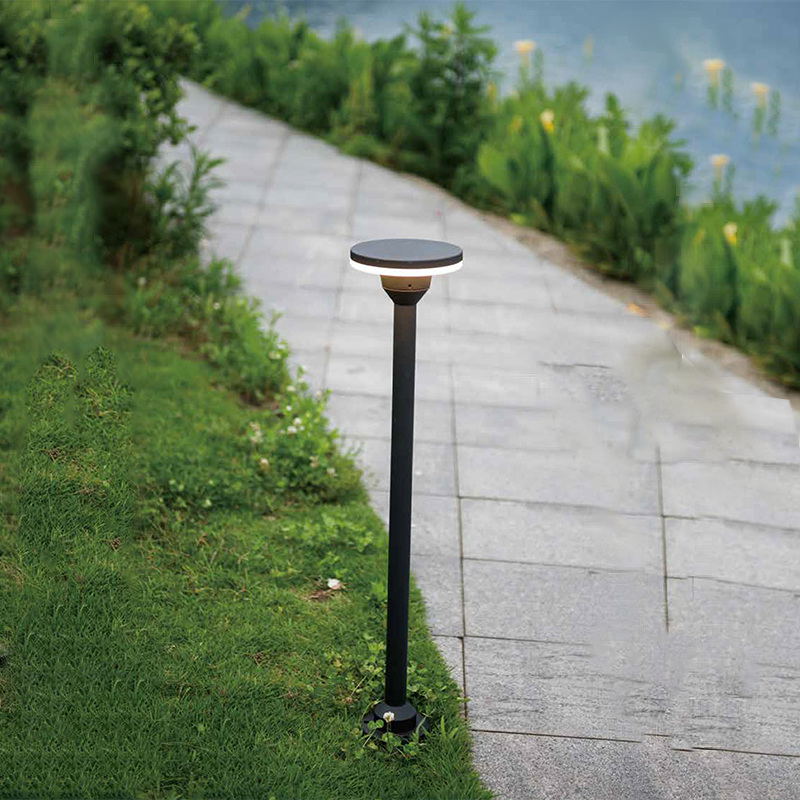

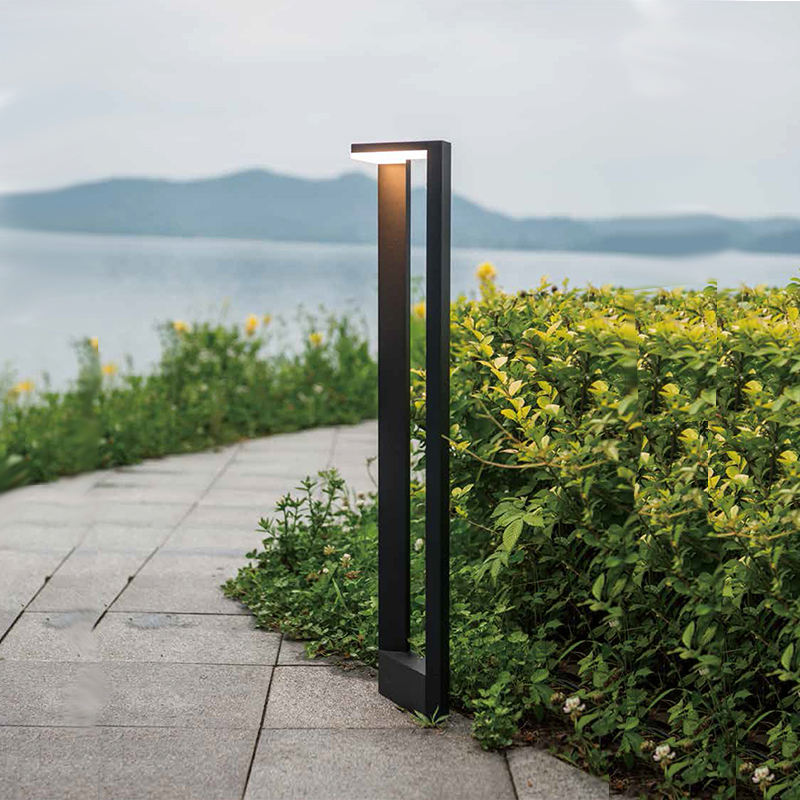

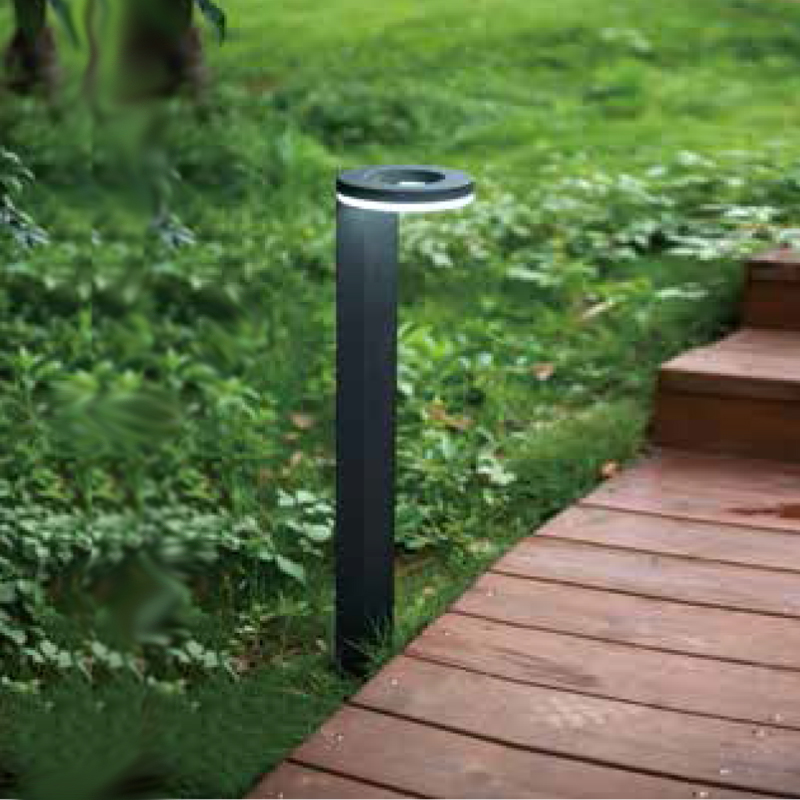

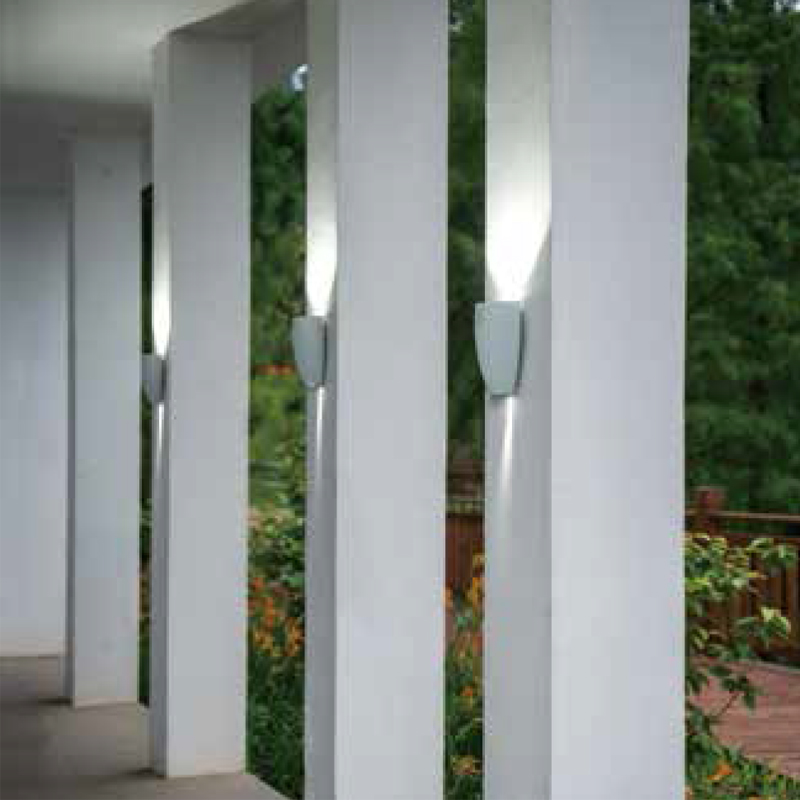

Design for all applicable LED luminaries, such as wall light, garden light, recessed light, bollards and other available LED luminaries, etc...

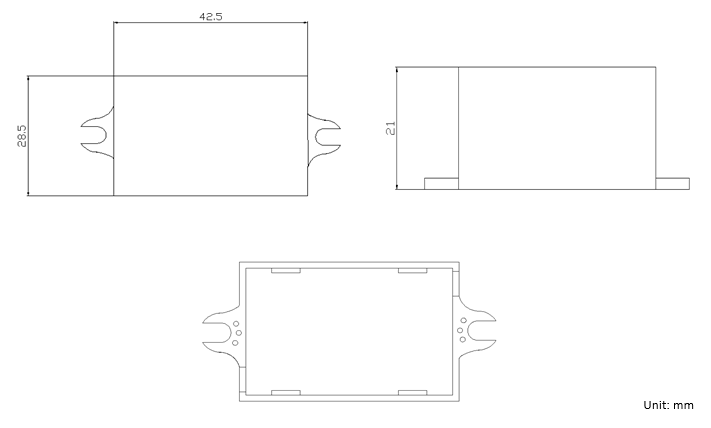

Mechanical specification：
Please contact us for more details:
