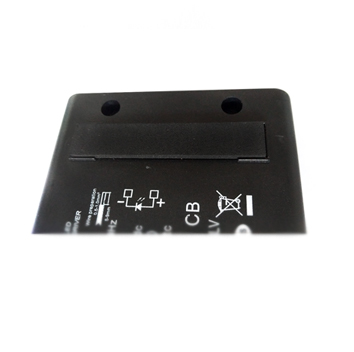

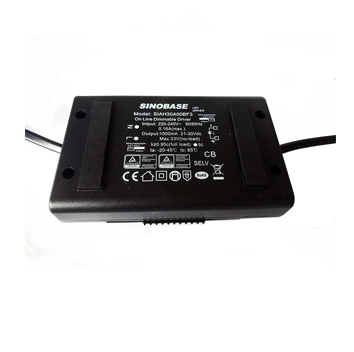

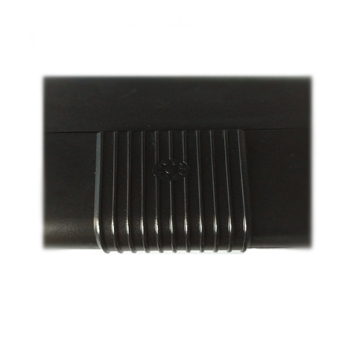

21-30W On-line Foot Dimmable LED Driver

Product Model: SIAH...BF3

Brand: SINOBASE

MOQ: 300

Origin:CHINA

Email Enquiry

Features:

  • Constant current mode

  • Output SELV protection, short circiut, over current and over voltage protection

  • Extreamely high precision current;

  • Dimming range: 3%-100%

  • High power factor

  • Dimming mode: stepless adjusted or single adjusted


Standards:

TUV EN60950-1            EN61347-2-13              EN55015                 EN55022(CISPR22)             EN61000-3-2

EN61000-3-3                EN61000-4-2                ENV50204               EN55024



Specification:

ModelInput voltage (V)P.F.Output Voltage (V)Output Current (mA)Output Power (W)

Dimension

L*W*H (mm)

SIAH85035BG3220-240Vac
0.95
65-85V350mA21-30W

114*71.5*30

SIAH75040BG352-75V400mA
.........
SIAH30A00BG321-30V1000mA


P.S.: The current step is 50mA, contact us for the specs out of above tables.
